1650 mm (70") Ditch Bank Flail Mower, Hydraulic Side Offset Verge & Slope Cutter for 30–60 HP Tractors, TMGTFMO70

1650 mm (70") Ditch Bank Flail Mower, Hydraulic Side Offset Verge & Slope Cutter for 30–60 HP Tractors, TMGTFMO70

TMG Industrial 70” Offset Ditch Bank Flail Mower with 90° Tilt, 30-60 HP Tractor, 3-Point Hitch, PTO Drive Shaft, TMG-TFMO70
CURRENTLY IN STOCK
SKU TMG-TFMO70
$4,999.00
$4,999.00 - $4,999.00
$4,999.00
$3,299.00
$3,299.00 - $3,299.00
$3,299.00
$4,999.00 Save $1,700.00
$3,299.00

+ SHIPPING FEE
Delivered in 10 to 15 business days Learn More
GRAB IT SOON - ONLY 1 LEFT IN STOCK
61-03-4151-5011
Product Manual
Find Parts

Features

Feature Image

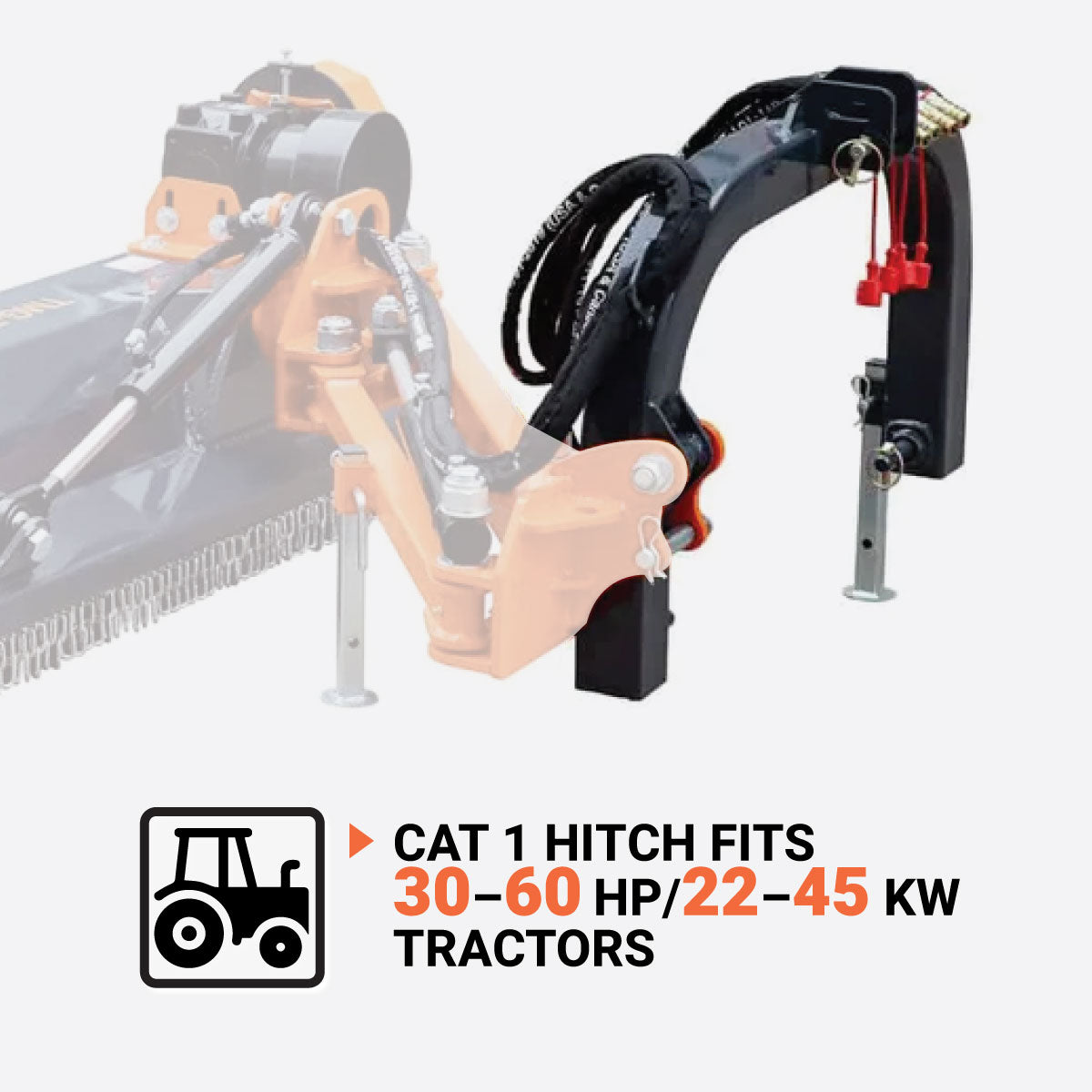

Compatible with 30–60 HP (22–45 kW) tractors via Category 1 three-point hitch
Feature Image

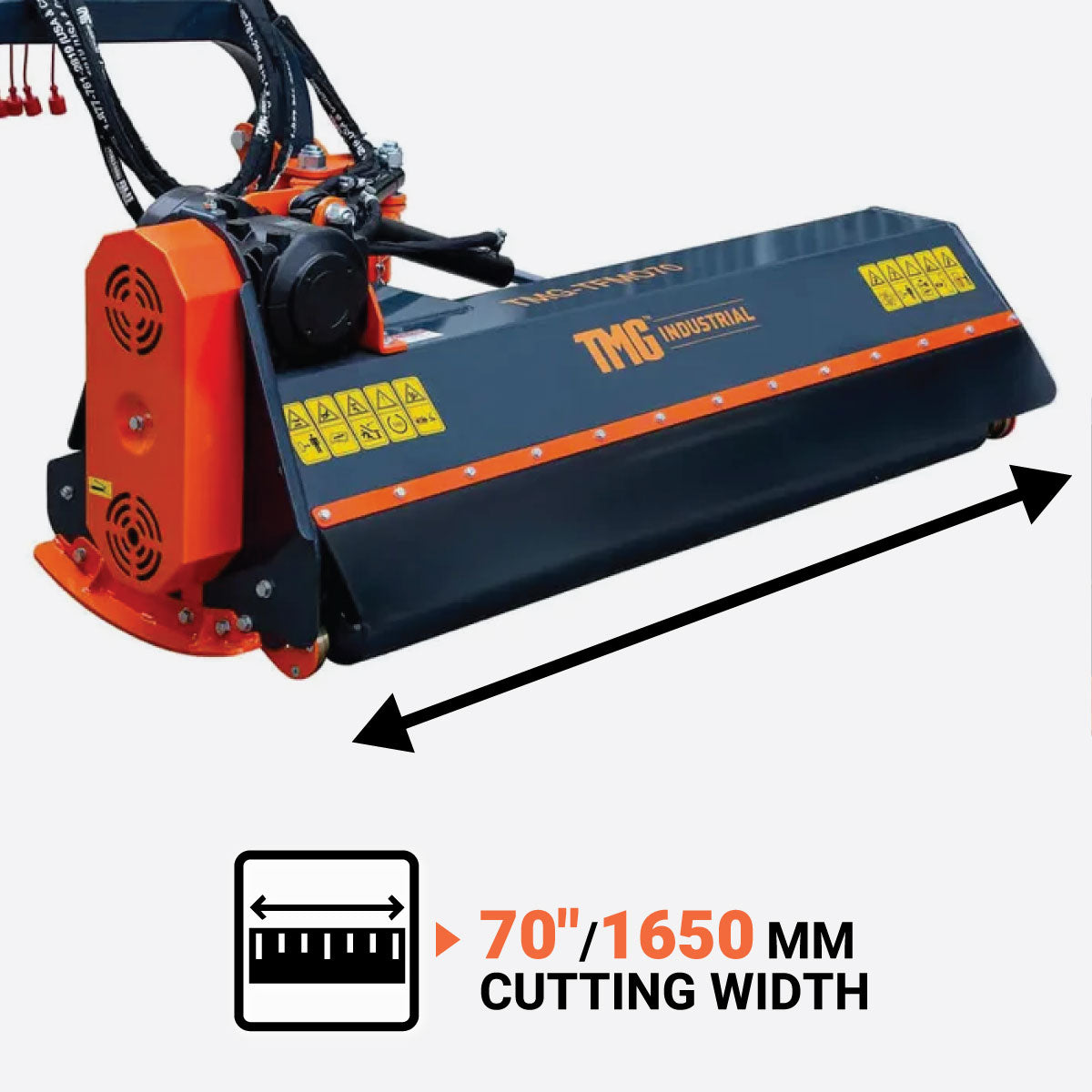

1650 mm (70″) working width optimizes coverage on large areas
Feature Image

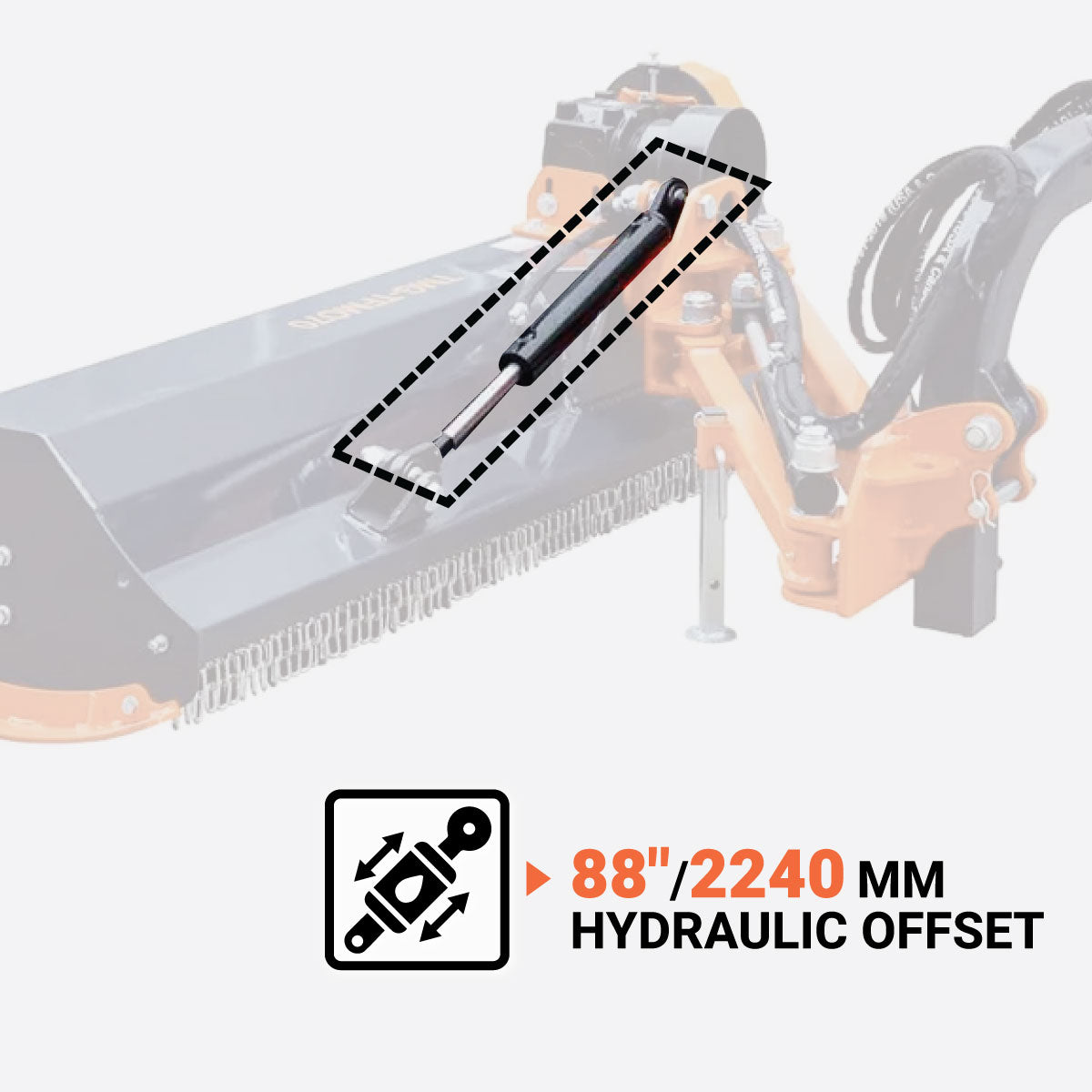

Hydraulic side-offset up to 2240 mm (88″) from center for reaching ditches, banks, and under overhangs
Feature Image

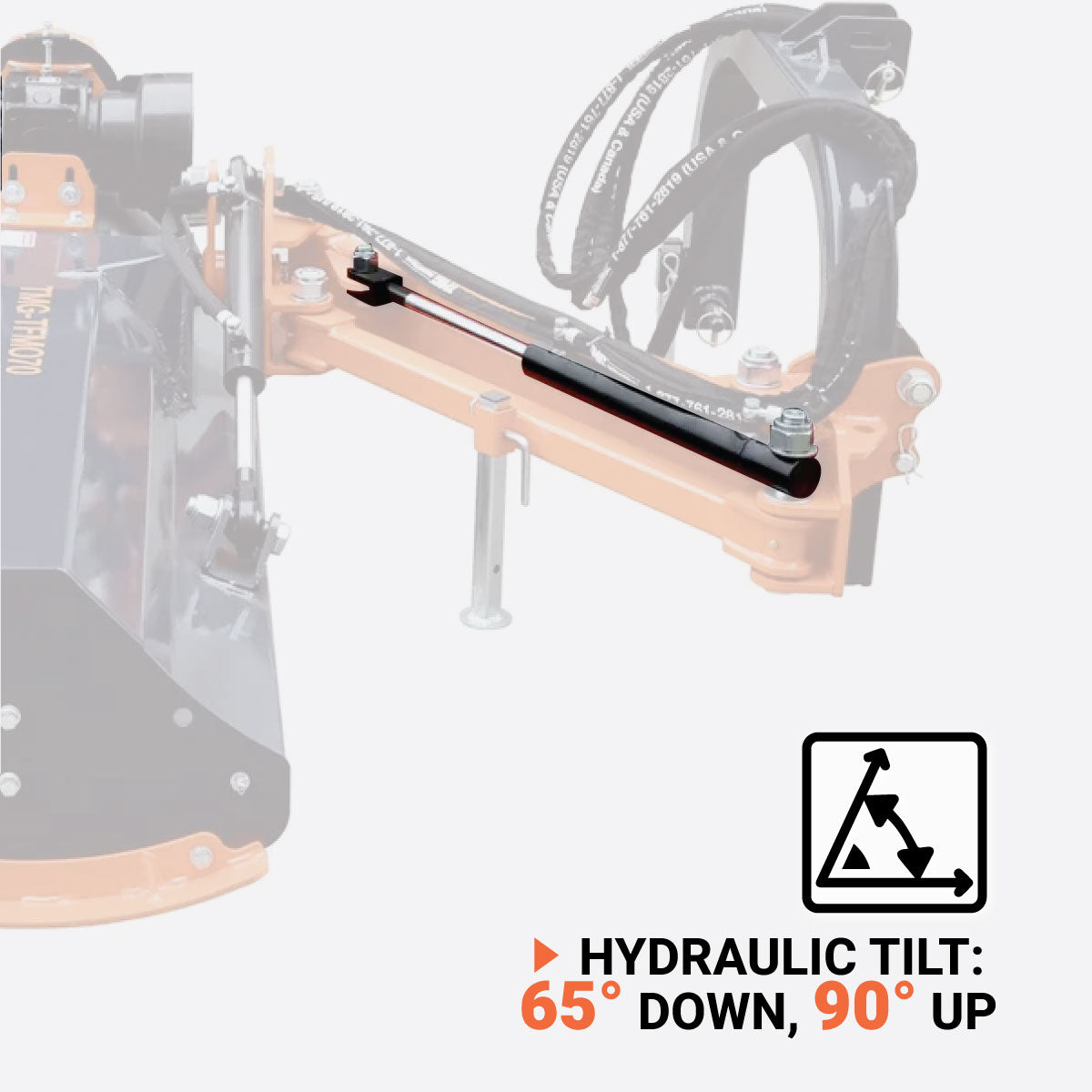

Hydraulic tilt control: 65° downward for steep slopes and 90° upward for convenient transport
Feature Image

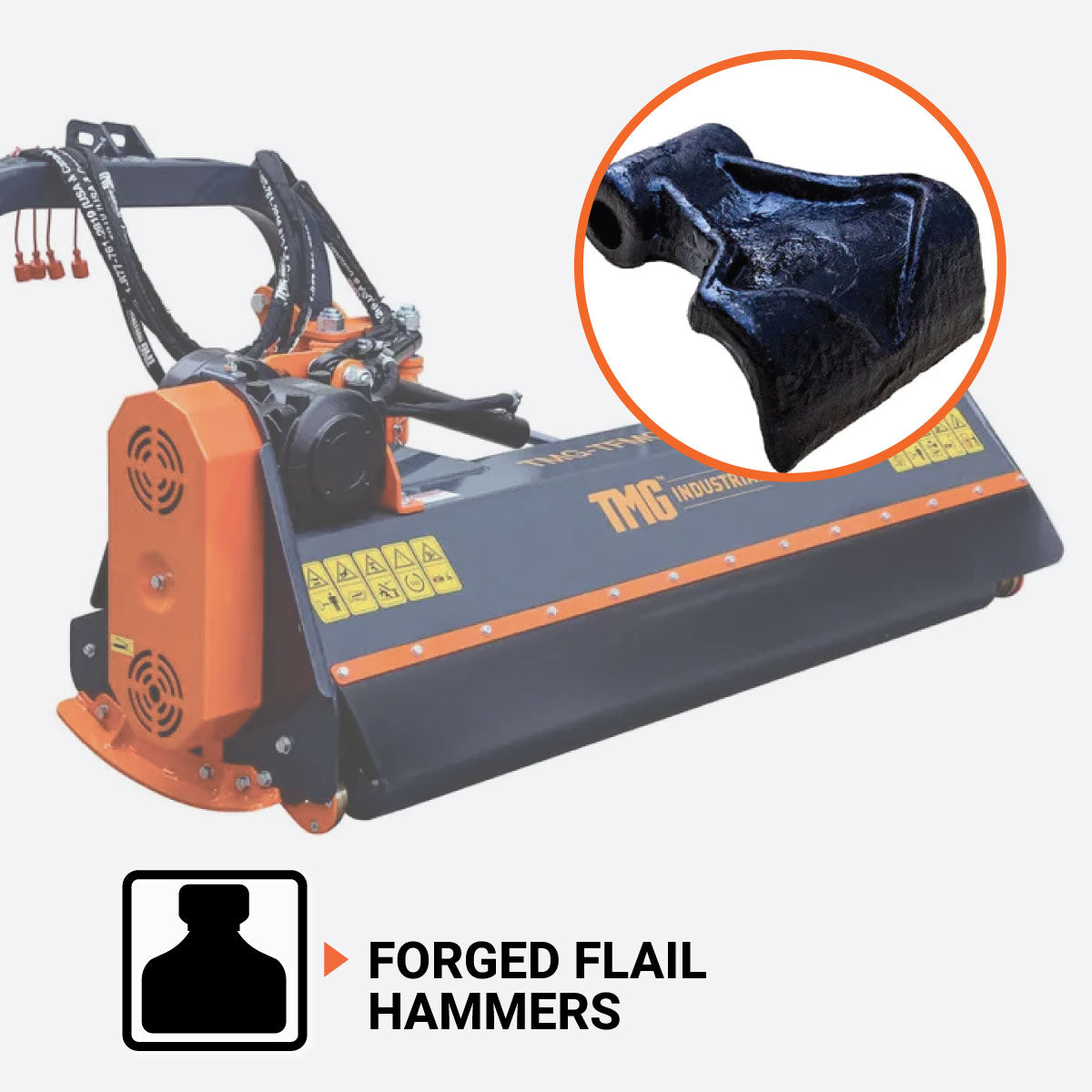

Forged flail hammers pulverize thick grass and overgrowth, distributing even mulch
Feature Image

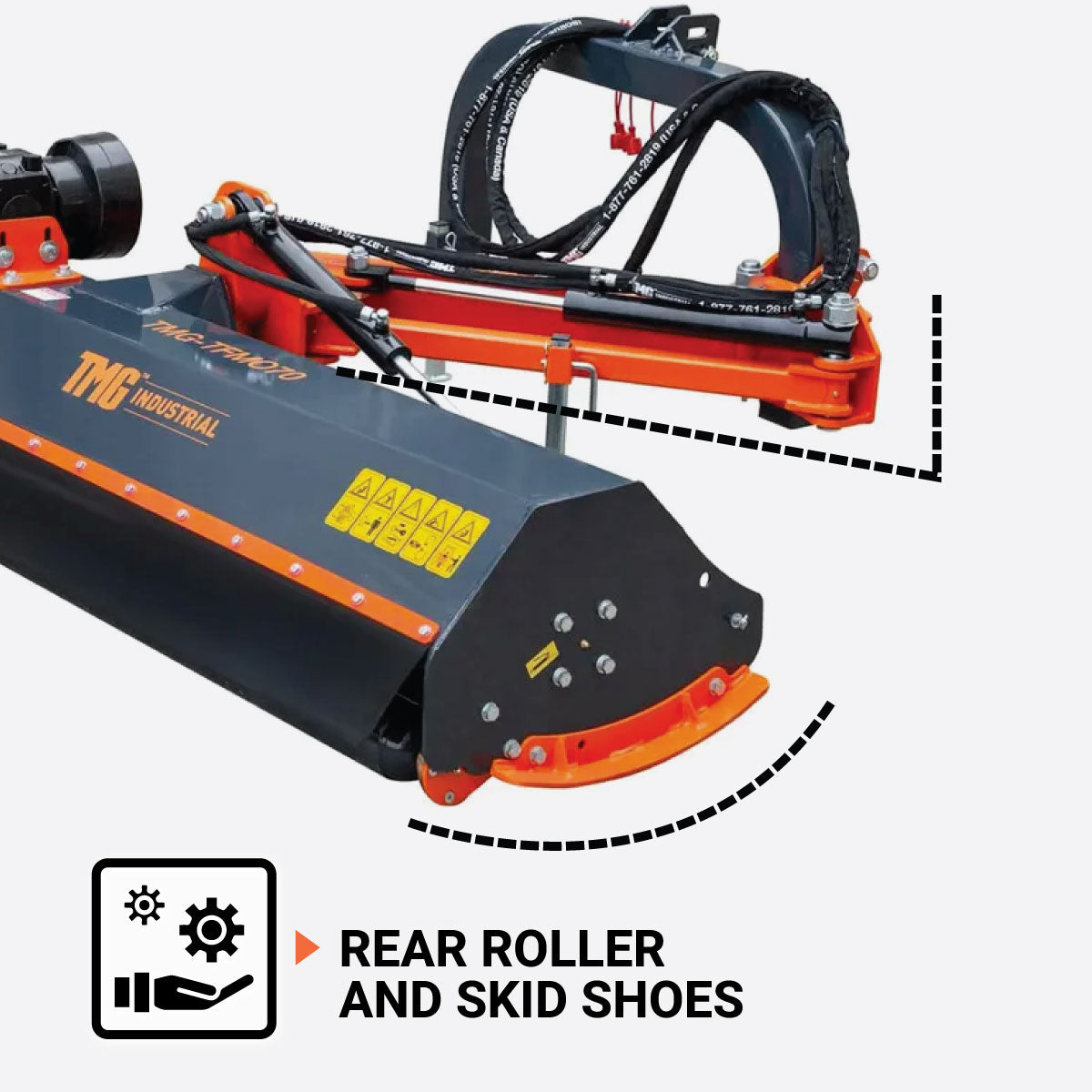

Adjustable cutting height with rear roller and skid shoes for consistent performance

Specifications

  • Tractor Horse Power Range: 30-50 hp
  • Mounting Type: 3 Point Hitch CAT 1
  • Working Width (mm): 1650 mm
  • Working Width (inch): 70"
  • Hydraulic Pressure: 16 MPa
  • Hydraulic Hoses & Flat Face Couplers: Included
  • Hydraulic Flat Face Couplers Size: G 1/2" Pioneer Coupler
  • Number of Hydraulic Hoses: 4
  • PTO Shaft: Included
  • Overrun Protection: Shear Pin
  • PTO Shaft RPM: 540
  • PTO Shaft Model: 04B-LF-1400
  • PTO Shaft Length (mm): 1400 mm
  • PTO Shaft Length (inch): 55"
  • Rotor Shaft Speed RPM: 2335
  • Rotor Diameter: 108 mm
  • Rotor Thickness: 8 mm
  • Max. Offset From Centre (mm): 1260 mm
  • Max. Offset From Centre (inch): 50"
  • Max. Offset Distance / Reach (mm): 2243 mm
  • Max. Offset Distance / Reach (inch): 88"
  • Tilt-Up Angle: 90°
  • Tilt-Down Angle: 45°
  • Number of Blades: 28
  • Blade Type: Hammers (Y Blades Sold Separately)
  • Blade Material: Forged Carbon Steel
  • Blade Ground Clearance: 10 - 33 mm
  • Adjustable & Replaceable Skid Shoes: Yes
  • Drive Type: Belt
  • Number of Belts: 3
  • Gearbox Oil Type: SAE 90
  • Deck Thickness: 4 mm
  • Side Skid Thickness: 8 mm
  • Finish: Powder Coated

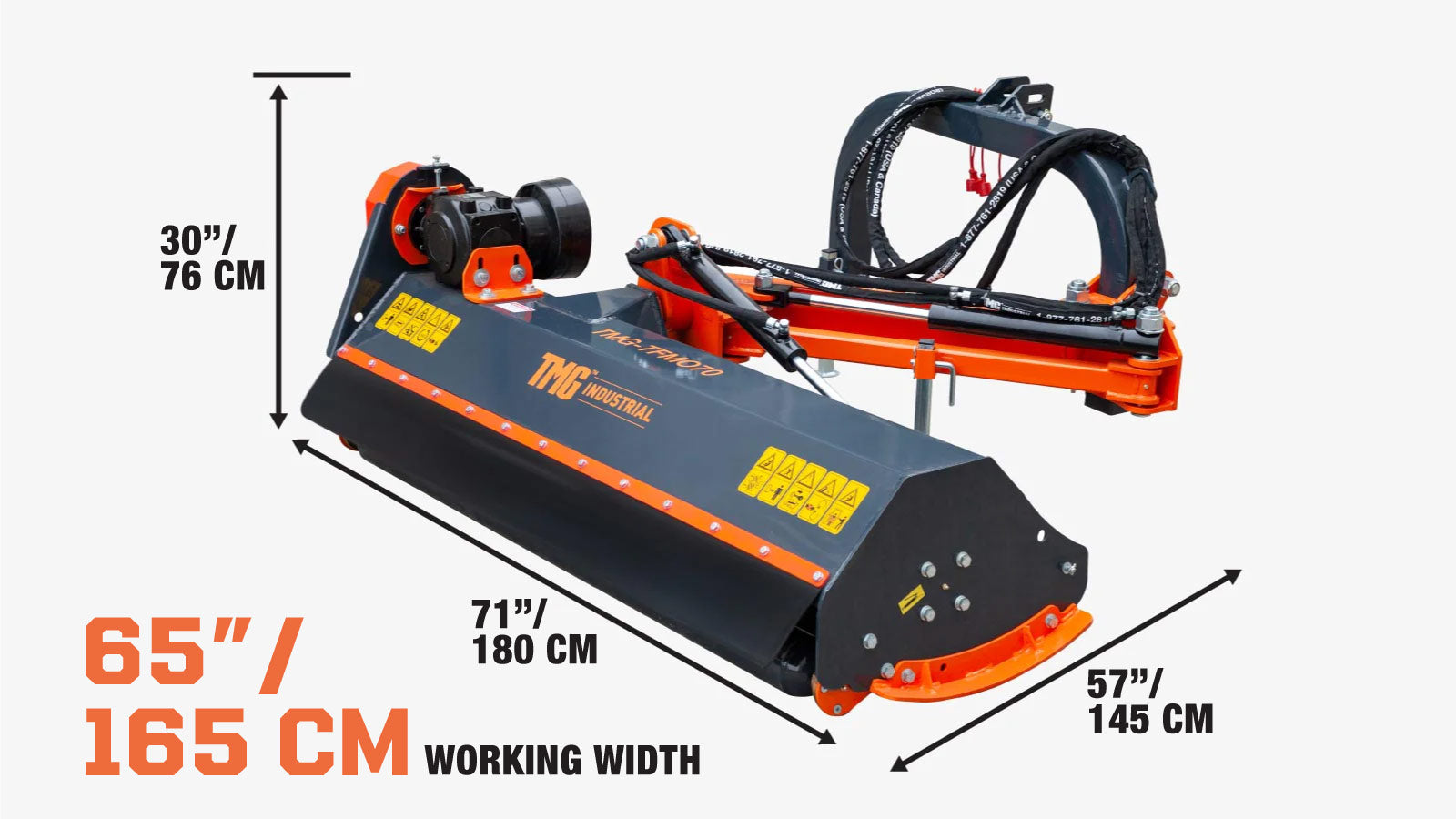

  • Overall Dimensions: 1800 x 1450 x 760 mm
  • Net Weight (kg): 315 kg
  • Net Weight (lb): 693 lb
1650 mm (70

Shipping Information

Your order will be shipped from our warehouse in Australia. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

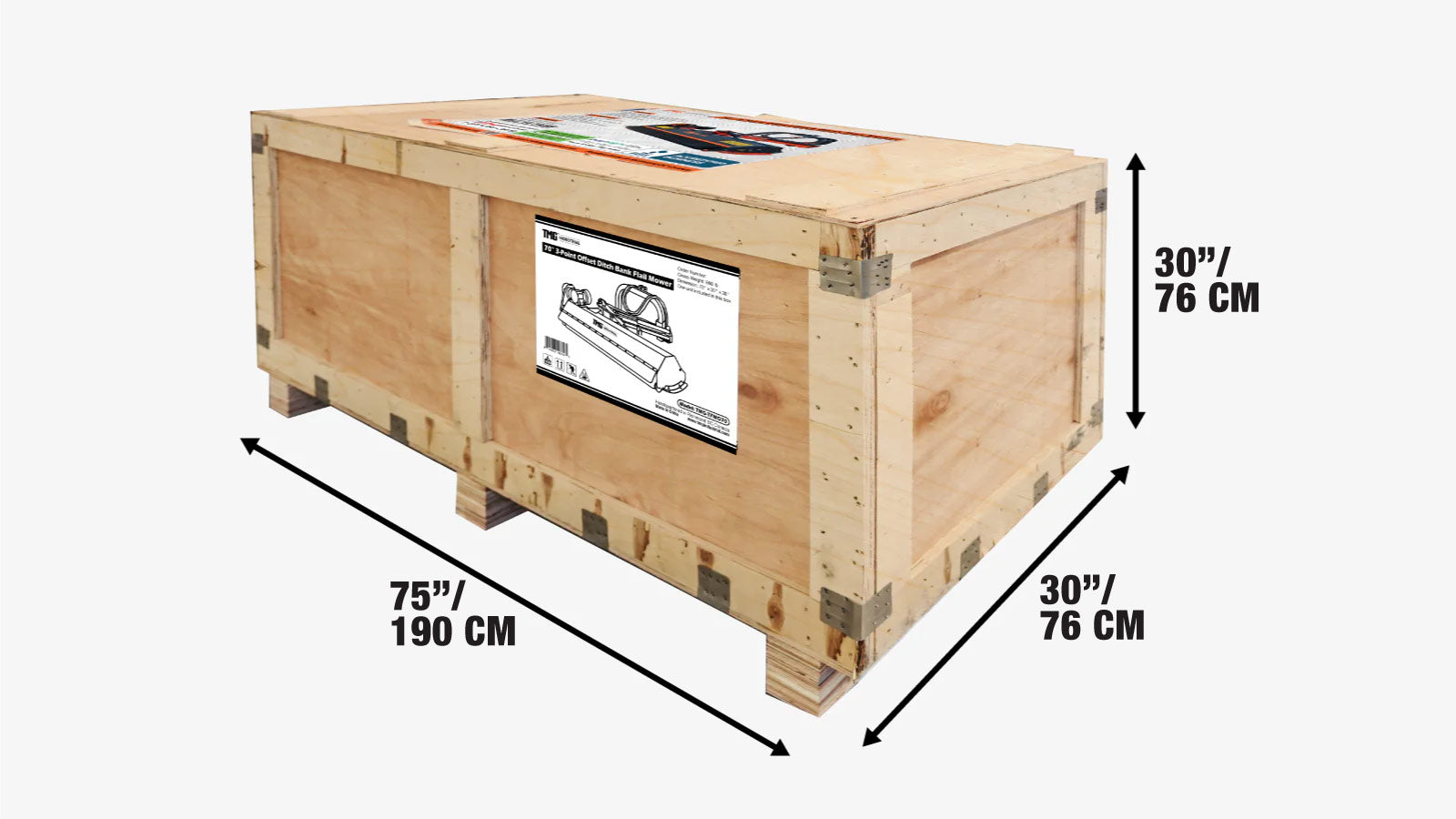

  • This product is packed in a wood crate shipping box
  • Shipping dimensions (L × W × H): 190 cm × 76 cm × 76 cm / 75″ × 30″ × 30″
  • Shipping weight: 380 kg (835 lb)
Shipping from Rowville,VIC
What happens after you place your order?
1650 mm (70

Product Description

The TMG-TFMO70 Offset Ditch Bank Flail Mower delivers professional-grade performance for roadside, embankment, farm, and field perimeter maintenance. With a 1650 mm (70") cutting width and 2243 mm (88") hydraulic reach, it tackles weeds and brush up to steep drop-offs. Its downward tilt range of 65° ensures versatility on varied terrain mowing, and 90° up angles for easy transportation. The durable 315 kg (700 lb) frame, forged flails, rear roller, and skid shoes offer reliable, clean cuts. Designed for 30–60 HP tractors with 540 RPM PTO and Category 1 hitch, it's ideal for contractors, landowners, and municipal crews.

TMG Industrial carries a full range of Offset Ditch Bank Flail Mowers of different sizes: TMG-TFMO50, TMG-TFMO60, TMG-TFMO80 and TMG-TFMO90. 

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
