CURRENTLY IN STOCK
TMG-GLS34L

30.8 Tonne (34 Ton) ATV/UTV Tow-Behind Log Splitter, 7 HP Gasoline Engine, 711 mm (28") Log Diameter Capacity, 3-Sec Cycle Time, TMG-GLS34L

30.8 Tonne (34 Ton) ATV/UTV Tow-Behind Log Splitter, 7 HP Gasoline Engine, 711 mm (28") Log Diameter Capacity, 3-Sec Cycle Time, TMG-GLS34L
CURRENTLY IN STOCK
TMG-GLS34L
$2,599.00 - $2,599.00
$2,599.00
$2,599.00 - $2,599.00
$2,599.00
$2,599.00

+ SHIPPING CHARGES APPLY
Delivered in 10 to 15 business days Learn More
1-800-870-844
Product Manual
Find Parts

Features

  • 7 HP engine for reliable performance
  • 30.8 tonnes (34 ton / 68000 lb) splitting power
  • 3 second cycle keeps the workflow moving smoothly
  • Handle logs up to 711 mm (28") in diameter and 578 mm (22-3/4") long
  • Robust 203 mm (8") wedge on Hbeam table simplifies splitting cycles
  • Tow-ready design with 51 mm (2") ball receiver and ATV-style tires for off-grid mobility

Specifications icon Specifications

  • Force: 30.8 tonnes (34 ton / 68000 lb)
  • Wedge height: 203 mm (8")
  • Log diameter capacity: 711 mm (28")
  • Log length capacity: 578 mm (22-3/4")
  • Tire:16 x 8.0-7
  • Cycle time: 3 seconds
  • H-beam height: 660 mm (26")
  • Overall size (L x W x H): 2108 x 838 x 965 mm (83" x 33" x 38")
  • 51 mm (2") ball receiver

Engine Specifications

  • Model: LONCIN G200 EPA
  • Type: Single cylinder, Four-cycle, OHV
  • Power: 7 HP
  • Displacement: 196 cc
  • Start type: Recoil
  • Oil capacity: 0.6 L

Shipping Information icon Shipping Information

The order will ship from one of our warehouses in Australia. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

  • This product is packed in a metal crate shipping box
  • Shipping dimension: 173 x 48 x 86 cm (68" x 19" x 34") (L x W x H)
  • Shipping weight: 240 kg (530 lb)
Shipping from Rowville,VIC
What happens after you place your order?

Product Description icon Product Description

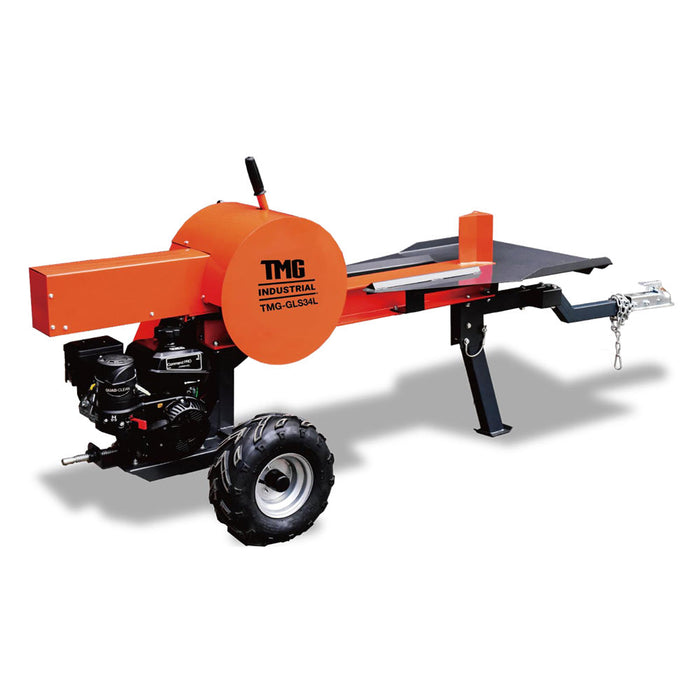

The TMG-GLS34L ATV/UTV Tow-Behind Log Splitter delivers powerful and mobile wood splitting performance for homes, acreages, farms and commercial properties. Powered by a reliable 7 HP gasoline engine, it produces up to 30.8 tonnes (34 tons) of splitting force to break down logs with the simple push of a lever. This tow-behind design saves time and reduces manual labour when processing firewood around your property.

This splitter can handle logs up to 711 mm (28") in diameter and 578 mm (22-3/4") in length. The H-beam and steel worktable sit 711 mm (28") off the ground, reducing bending while loading logs or removing split wood. A 203 mm (8") steel wedge provides consistent splitting performance through dense or oversized material.

The heavy-duty steel frame connects easily to your ATV or UTV with a 51 mm (2") ball coupler. Since it runs on gasoline power, it can be used in remote areas without access to electricity, while the off-road tires provide mobility across rugged terrain.

TMG also carries several models of log splitters with gas engines and at various capacities: TMG-GLS25, TMG-GLS35, TMG-GLS20, TMG-GLS16

Warranty icon Warranty

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy
